Ambiance – Illusion 47
A version of this product is on display in our showroom. Come check it out!

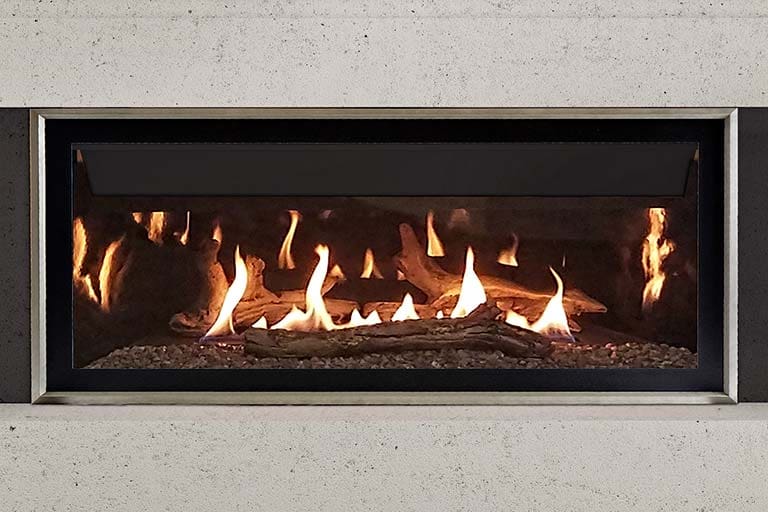

The Illusion® 47 Linear Gas Fireplace comes standard with – matte black interior finish, the Ecotel programmable thermostatic remote and gorgeous Vancouver Island drift wood logs. You can enhance the look of your Illusion® 47 to fit your home. You have the option to upgrade the exterior look with – Decorative Front. Also, optional logs are offered in oak or white birch. At last, double the flames by adding the porcelain enameled reflective panels inside the firebox. Enjoy its cozy flame and look anytime!
|
Power
|
NG MAX 24 000 BTU |
NG MIN 17 000 BTU |
LP MAX 24 000 BTU |
LP MIN 17 000 BTU |
|---|---|---|---|---|
|
Fuel Management
|
Valve Type IPI |
Thermostat Remote Control |
Turn Down 29%NG / 29%LP |
|
|
Dimensions
|
GLASS 40 1⁄2" x 16 3⁄4" (678 sq in) |
FRAMMING 47 3⁄8" W x 18 9⁄16" D x 39 3⁄8" H |
OVERALL 46 7⁄8" W x 18 13⁄16" D x 39 1⁄16" H |
|
|
Mantel Shelf Clearances
|
Combustible Mantel Shelf 6-inch Shelf: 16" |
Ambiance® Non-Combustible Mantels No Clearance required |
||
|
Venting
|
TYPE Direct Vent |
MAX HEIGHT 40 Feet |
INSIDE & OUTSIDE DIAMETERS 4" & 7" |
|
|
Optional Blower
|
Type Variable Speed |
CFM 100 |
Additional information
| Brand | Ambiance |
|---|---|
| Fuel Type | Gas |
| Product Type | Fireplace |
| Design Style | Linear |
